Space X Falcon 9 First Stage Landing Prediction ¶
Assignment: Machine Learning Prediction ¶
Estimated time needed: 60 minutes
Space X advertises Falcon 9 rocket launches on its website with a cost of 62 million dollars; other providers cost upward of 165 million dollars each, much of the savings is because Space X can reuse the first stage. Therefore if we can determine if the first stage will land, we can determine the cost of a launch. This information can be used if an alternate company wants to bid against space X for a rocket launch. In this lab, you will create a machine learning pipeline to predict if the first stage will land given the data from the preceding labs.
Several examples of an unsuccessful landing are shown here:
Most unsuccessful landings are planed. Space X; performs a controlled landing in the oceans.
Objectives ¶
Perform exploratory Data Analysis and determine Training Labels
- create a column for the class
- Standardize the data
- Split into training data and test data
-Find best Hyperparameter for SVM, Classification Trees and Logistic Regression
- Find the method performs best using test data
Import Libraries and Define Auxiliary Functions ¶
We will import the following libraries for the lab
# Pandas is a software library written for the Python programming language for data manipulation and analysis.
import pandas as pd
# NumPy is a library for the Python programming language, adding support for large, multi-dimensional arrays and matrices, along with a large collection of high-level mathematical functions to operate on these arrays
import numpy as np
# Matplotlib is a plotting library for python and pyplot gives us a MatLab like plotting framework. We will use this in our plotter function to plot data.
import matplotlib.pyplot as plt
#Seaborn is a Python data visualization library based on matplotlib. It provides a high-level interface for drawing attractive and informative statistical graphics
import seaborn as sns
# Preprocessing allows us to standarsize our data
from sklearn import preprocessing
# Allows us to split our data into training and testing data
from sklearn.model_selection import train_test_split
# Allows us to test parameters of classification algorithms and find the best one
from sklearn.model_selection import GridSearchCV
# Logistic Regression classification algorithm
from sklearn.linear_model import LogisticRegression
# Support Vector Machine classification algorithm
from sklearn.svm import SVC
# Decision Tree classification algorithm
from sklearn.tree import DecisionTreeClassifier
# K Nearest Neighbors classification algorithm
from sklearn.neighbors import KNeighborsClassifier
This function is to plot the confusion matrix.
def plot_confusion_matrix(y,y_predict):
"this function plots the confusion matrix"
from sklearn.metrics import confusion_matrix
cm = confusion_matrix(y, y_predict)
ax= plt.subplot()
sns.heatmap(cm, annot=True, ax = ax); #annot=True to annotate cells
ax.set_xlabel('Predicted labels')
ax.set_ylabel('True labels')
ax.set_title('Confusion Matrix');
ax.xaxis.set_ticklabels(['did not land', 'land']); ax.yaxis.set_ticklabels(['did not land', 'landed'])
Load the dataframe ¶
Load the data
# data = pd.read_csv("https://cf-courses-data.s3.us.cloud-object-storage.appdomain.cloud/IBM-DS0321EN-SkillsNetwork/datasets/dataset_part_2.csv")
data = pd.read_csv("data/IBM-DS0321EN-SkillsNetwork/datasets/dataset_part_2.csv")
# If you were unable to complete the previous lab correctly you can uncomment and load this csv
# data = pd.read_csv('https://cf-courses-data.s3.us.cloud-object-storage.appdomain.cloud/IBMDeveloperSkillsNetwork-DS0701EN-SkillsNetwork/api/dataset_part_2.csv')
data.head()
# X = pd.read_csv('https://cf-courses-data.s3.us.cloud-object-storage.appdomain.cloud/IBM-DS0321EN-SkillsNetwork/datasets/dataset_part_3.csv')
X = pd.read_csv('data/IBM-DS0321EN-SkillsNetwork/datasets/dataset_part_3.csv')
# If you were unable to complete the previous lab correctly you can uncomment and load this csv
# X = pd.read_csv('https://cf-courses-data.s3.us.cloud-object-storage.appdomain.cloud/IBMDeveloperSkillsNetwork-DS0701EN-SkillsNetwork/api/dataset_part_3.csv')
X.head(100)
TASK 1 (Prepare Y) ¶
Create a NumPy array from the column
Class
in
data
, by applying the method
to_numpy()
then
assign it to the variable
Y
,make sure the output is a Pandas series (only one bracket df['name of column']).
Y = data['Class'].to_numpy()
Y
TASK 2 (Prepare X) ¶
Standardize the data in
X
then reassign it to the variable
X
using the transform provided below.
# students get this
transform = preprocessing.StandardScaler()
X = transform.fit_transform(X)
X
We split the data into training and testing data using the function
train_test_split
. The training data is divided into validation data, a second set used for training data; then the models are trained and hyperparameters are selected using the function
GridSearchCV
.
TASK 3 (Data split: 20% test) ¶
Use the function train_test_split to split the data X and Y into training and test data. Set the parameter test_size to 0.2 and random_state to 2. The training data and test data should be assigned to the following labels.
X_train, X_test, Y_train, Y_test
RANDOM_STATE = 2
X_train, X_test, Y_train, Y_test = train_test_split(X, Y, test_size=0.2, random_state=RANDOM_STATE)
we can see we only have 18 test samples.
Y_test.shape
TASK 4 (Model: Logistic Regression) ¶
Create a logistic regression object then create a GridSearchCV object
logreg_cv
with cv = 10. Fit the object to find the best parameters from the dictionary
parameters
.
parameters ={'C':[0.01,0.1,1],
'penalty':['l2'],
'solver':['lbfgs']}
parameters ={"C":[0.01,0.1,1],'penalty':['l2'], 'solver':['lbfgs']}# l1 lasso l2 ridge
lr=LogisticRegression(random_state=RANDOM_STATE)
logreg_cv = GridSearchCV(lr, param_grid=parameters, cv=10)
logreg_cv.fit(X_train,Y_train)
We output the
GridSearchCV
object for logistic regression. We display the best parameters using the data attribute
best_params\_
and the accuracy on the validation data using the data attribute
best_score\_
.
print("tuned hpyerparameters :(best parameters) ",logreg_cv.best_params_)
print("accuracy :",logreg_cv.best_score_)
TASK 5 (Validate: Logistic Regression) ¶
Calculate the accuracy on the test data using the method
score
:
logreg_cv.score(X_test,Y_test)

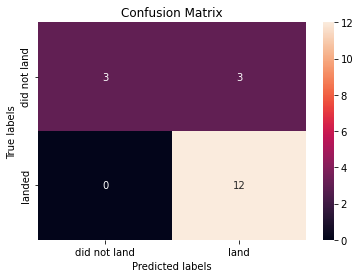

Lets look at the confusion matrix:
yhat=logreg_cv.predict(X_test)
plot_confusion_matrix(Y_test,yhat)
Examining the confusion matrix, we see that logistic regression can distinguish between the different classes. We see that the major problem is false positives.
TASK 6 (Model: SVM) ¶
Create a support vector machine object then create a
GridSearchCV
object
svm_cv
with cv - 10. Fit the object to find the best parameters from the dictionary
parameters
.
parameters = {'kernel':('linear', 'rbf','poly','rbf', 'sigmoid'),
'C': np.logspace(-3, 3, 5),
'gamma':np.logspace(-3, 3, 5)}
svm = SVC(random_state=RANDOM_STATE)
svm_cv = GridSearchCV(svm, param_grid=parameters, cv=10)
svm_cv.fit(X_train, Y_train)
print("tuned hpyerparameters :(best parameters) ",svm_cv.best_params_)
print("accuracy :",svm_cv.best_score_)
TASK 7 (Validate: SVM) ¶
Calculate the accuracy on the test data using the method
score
:
svm_cv.score(X_test,Y_test)
We can plot the confusion matrix
yhat=svm_cv.predict(X_test)
plot_confusion_matrix(Y_test,yhat)
TASK 8 (Model: Decision Tree) ¶
Create a decision tree classifier object then create a
GridSearchCV
object
tree_cv
with cv = 10. Fit the object to find the best parameters from the dictionary
parameters
.
parameters = {'criterion': ['gini', 'entropy'],
'splitter': ['best', 'random'],
'max_depth': [2*n for n in range(1,10)],
'max_features': ['auto', 'sqrt'],
'min_samples_leaf': [1, 2, 4],
'min_samples_split': [2, 5, 10]}
tree = DecisionTreeClassifier(random_state=RANDOM_STATE)
tree_cv = GridSearchCV(tree,parameters,cv=10)
tree_cv.fit(X_train,Y_train)
print("tuned hpyerparameters :(best parameters) ",tree_cv.best_params_)
print("accuracy :",tree_cv.best_score_)
TASK 9 (Validate: Decision Tree) ¶
Calculate the accuracy of tree_cv on the test data using the method
score
:
tree_cv.score(X_test,Y_test)
We can plot the confusion matrix
yhat = svm_cv.predict(X_test)
plot_confusion_matrix(Y_test,yhat)
TASK 10 (Model: KNN) ¶
Create a k nearest neighbors object then create a
GridSearchCV
object
knn_cv
with cv = 10. Fit the object to find the best parameters from the dictionary
parameters
.
parameters = {'n_neighbors': [1, 2, 3, 4, 5, 6, 7, 8, 9, 10],
'algorithm': ['auto', 'ball_tree', 'kd_tree', 'brute'],
'p': [1,2]}
KNN = KNeighborsClassifier()
knn_cv = GridSearchCV(KNN,parameters,cv=10)
knn_cv.fit(X_train,Y_train)
print("tuned hpyerparameters :(best parameters) ",knn_cv.best_params_)
print("accuracy :",knn_cv.best_score_)
TASK 11 (Validate: KNN) ¶
Calculate the accuracy of
knn_cv
on the test data using the method
score
:
knn_cv.score(X_test,Y_test)
We can plot the confusion matrix
yhat = knn_cv.predict(X_test)
plot_confusion_matrix(Y_test,yhat)
TASK 12 (Compare all models) ¶
Find the method performs best:
all_models = [logreg_cv, svm_cv, tree_cv, knn_cv]
all_scores = [model.score(X_test,Y_test) for model in all_models]
all_scores

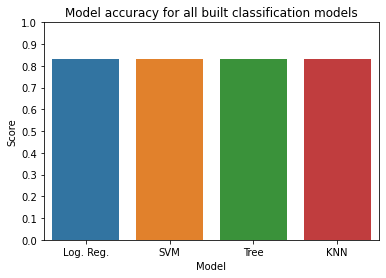

sns.barplot(x='Model', y='Score', data=pd.DataFrame({
'Model': ["Log. Reg.", "SVM", "Tree", "KNN"],
'Score': all_scores
}))
plt.yticks(np.linspace(0,1,11))
plt.title("Model accuracy for all built classification models")
plt.show()
from sklearn.metrics import jaccard_score
[jaccard_score(Y_test, model.predict(X_test)) for model in all_models]
best_model = all_models[all_scores.index(max(all_scores))]
best_model
best_model.score(X_test,Y_test)
yhat = best_model.predict(X_test)
plot_confusion_matrix(Y_test,yhat)
