Space X Falcon 9 First Stage Landing Prediction ¶
Web scraping Falcon 9 and Falcon Heavy Launches Records from Wikipedia ¶
Estimated time needed: 40 minutes
In this lab, you will be performing web scraping to collect Falcon 9 historical launch records from a Wikipedia page titled
List of Falcon 9 and Falcon Heavy launches
https://en.wikipedia.org/wiki/List_of_Falcon\_9\_and_Falcon_Heavy_launches
Falcon 9 first stage will land successfully
Several examples of an unsuccessful landing are shown here:

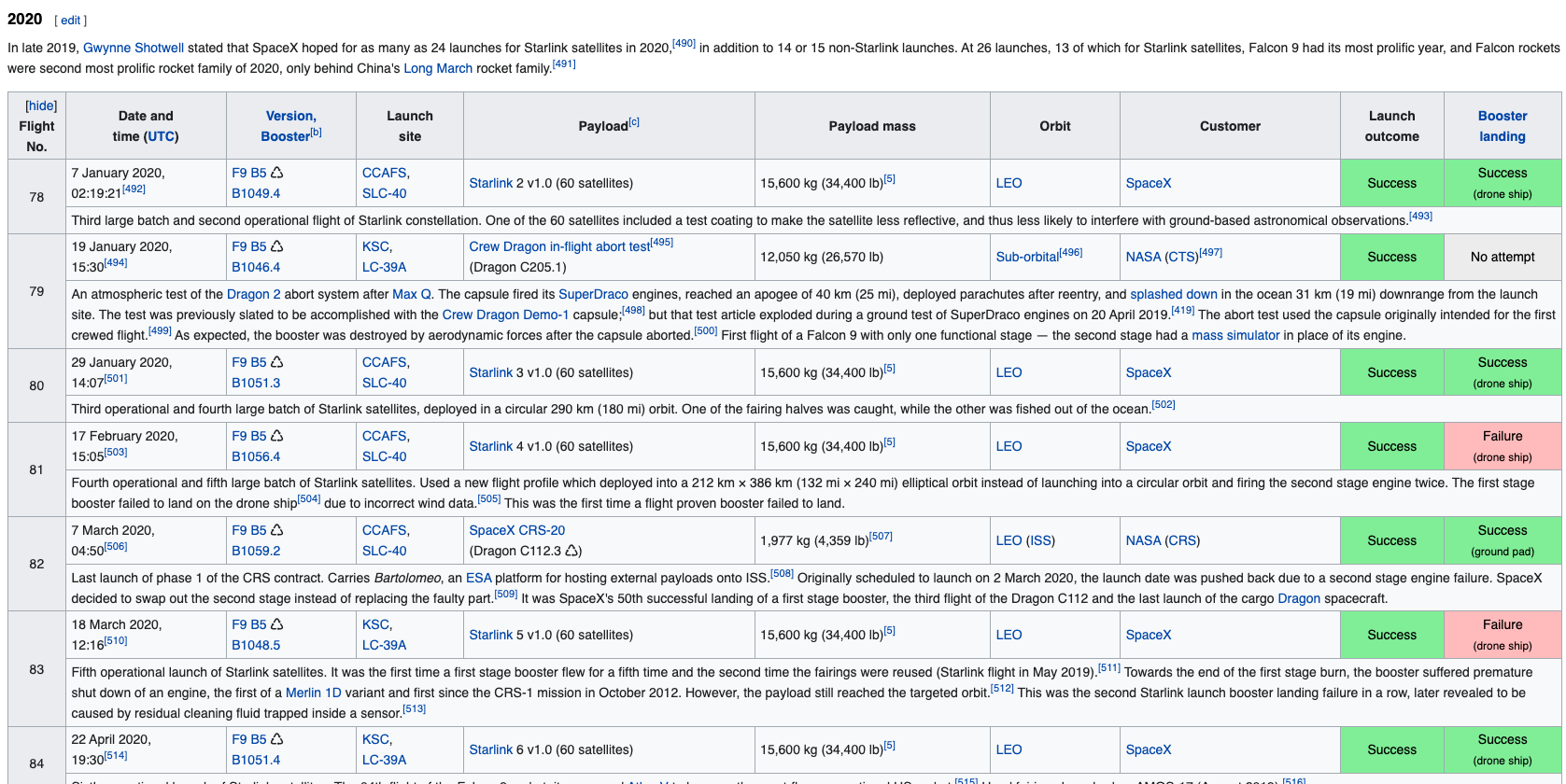

More specifically, the launch records are stored in a HTML table shown below:
Objectives ¶
Web scrap Falcon 9 launch records with
BeautifulSoup
:
- Extract a Falcon 9 launch records HTML table from Wikipedia
- Parse the table and convert it into a Pandas data frame
First let's import required packages for this lab
# !pip3 install beautifulsoup4
# !pip3 install requests
import sys
import requests
from bs4 import BeautifulSoup
import re
import unicodedata
import pandas as pd
and we will provide some helper functions for you to process web scraped HTML table
def date_time(table_cells):
"""
This function returns the data and time from the HTML table cell
Input: the element of a table data cell extracts extra row
"""
return [data_time.strip() for data_time in list(table_cells.strings)][0:2]
def booster_version(table_cells):
"""
This function returns the booster version from the HTML table cell
Input: the element of a table data cell extracts extra row
"""
out=''.join([booster_version for i,booster_version in enumerate( table_cells.strings) if i%2==0][0:-1])
return out
def landing_status(table_cells):
"""
This function returns the landing status from the HTML table cell
Input: the element of a table data cell extracts extra row
"""
out=[i for i in table_cells.strings][0]
return out
def get_mass(table_cells):
mass=unicodedata.normalize("NFKD", table_cells.text).strip()
if mass:
mass.find("kg")
new_mass=mass[0:mass.find("kg")+2]
else:
new_mass=0
return new_mass
def extract_column_from_header(row):
"""
This function returns the landing status from the HTML table cell
Input: the element of a table data cell extracts extra row
"""
if (row.br):
row.br.extract()
if row.a:
row.a.extract()
if row.sup:
row.sup.extract()
colunm_name = ' '.join(row.contents)
# Filter the digit and empty names
if not(colunm_name.strip().isdigit()):
colunm_name = colunm_name.strip()
return colunm_name
To keep the lab tasks consistent, you will be asked to scrape the data from a snapshot of the
List of Falcon 9 and Falcon Heavy launches
Wikipage updated on
9th June 2021
static_url = "https://en.wikipedia.org/w/index.php?title=List_of_Falcon_9_and_Falcon_Heavy_launches&oldid=1027686922"
Next, request the HTML page from the above URL and get a
response
object
TASK 1: Request the Falcon9 Launch Wiki page from its URL ¶
First, let's perform an HTTP GET method to request the Falcon9 Launch HTML page, as an HTTP response.
# use requests.get() method with the provided static_url
# assign the response to a object
response = requests.get(static_url)
response.status_code
Create a
BeautifulSoup
object from the HTML
response
# Use BeautifulSoup() to create a BeautifulSoup object from a response text content
soup = BeautifulSoup(response.text)
Print the page title to verify if the
BeautifulSoup
object was created properly
# Use soup.title attribute
print(soup.title)
TASK 2: Extract all column/variable names from the HTML table header ¶
Next, we want to collect all relevant column names from the HTML table header
Let's try to find all tables on the wiki page first. If you need to refresh your memory about
BeautifulSoup
, please check the external reference link towards the end of this lab
# Use the find_all function in the BeautifulSoup object, with element type `table`
# Assign the result to a list called `html_tables`
html_tables = soup.find_all('table')
len(html_tables)
Starting from the third table is our target table contains the actual launch records.
# Let's print the third table and check its content
first_launch_table = html_tables[2]
print(first_launch_table)
You should able to see the columns names embedded in the table header elements
<th>
as follows:
<tr>
<th scope="col">Flight No.
</th>
<th scope="col">Date and<br/>time (<a href="/wiki/Coordinated_Universal_Time" title="Coordinated Universal Time">UTC</a>)
</th>
<th scope="col"><a href="/wiki/List_of_Falcon_9_first-stage_boosters" title="List of Falcon 9 first-stage boosters">Version,<br/>Booster</a> <sup class="reference" id="cite_ref-booster_11-0"><a href="#cite_note-booster-11">[b]</a></sup>
</th>
<th scope="col">Launch site
</th>
<th scope="col">Payload<sup class="reference" id="cite_ref-Dragon_12-0"><a href="#cite_note-Dragon-12">[c]</a></sup>
</th>
<th scope="col">Payload mass
</th>
<th scope="col">Orbit
</th>
<th scope="col">Customer
</th>
<th scope="col">Launch<br/>outcome
</th>
<th scope="col"><a href="/wiki/Falcon_9_first-stage_landing_tests" title="Falcon 9 first-stage landing tests">Booster<br/>landing</a>
</th></tr>
Next, we just need to iterate through the
<th>
elements and apply the provided
extract_column_from_header()
to extract column name one by one
column_names = []
# Apply find_all() function with `th` element on first_launch_table
# Iterate each th element and apply the provided extract_column_from_header() to get a column name
# Append the Non-empty column name (`if name is not None and len(name) > 0`) into a list called column_names
for row in first_launch_table.find_all('th'):
name = extract_column_from_header(row)
if name is not None and len(name) > 0:
column_names.append(name)
Check the extracted column names
print(column_names)
TASK 3: Create a data frame by parsing the launch HTML tables ¶
We will create an empty dictionary with keys from the extracted column names in the previous task. Later, this dictionary will be converted into a Pandas dataframe
launch_dict= dict.fromkeys(column_names)
# Remove an irrelvant column
del launch_dict['Date and time ( )']
# Let's initial the launch_dict with each value to be an empty list
launch_dict['Flight No.'] = []
launch_dict['Launch site'] = []
launch_dict['Payload'] = []
launch_dict['Payload mass'] = []
launch_dict['Orbit'] = []
launch_dict['Customer'] = []
launch_dict['Launch outcome'] = []
# Added some new columns
launch_dict['Version Booster']=[]
launch_dict['Booster landing']=[]
launch_dict['Date']=[]
launch_dict['Time']=[]
Next, we just need to fill up the
launch_dict
with launch records extracted from table rows.
Usually, HTML tables in Wiki pages are likely to contain unexpected annotations and other types of noises, such as reference links
B0004.1[8]
, missing values
N/A [e]
, inconsistent formatting, etc.
To simplify the parsing process, we have provided an incomplete code snippet below to help you to fill up the
launch_dict
. Please complete the following code snippet with TODOs or you can choose to write your own logic to parse all launch tables:
extracted_row = 0
#Extract each table
for table_number,table in enumerate(soup.find_all('table',"wikitable plainrowheaders collapsible")):
# get table row
for rows in table.find_all("tr"):
#check to see if first table heading is as number corresponding to launch a number
if rows.th:
if rows.th.string:
flight_number=rows.th.string.strip()
flag=flight_number.isdigit()
else:
flag=False
#get table element
row=rows.find_all('td')
#if it is number save cells in a dictonary
if flag:
extracted_row += 1
# Flight Number value
# TODO: Append the flight_number into launch_dict with key `Flight No.`
# print(flight_number)
launch_dict['Flight No.'].append(flight_number)
datatimelist=date_time(row[0])
# Date value
# TODO: Append the date into launch_dict with key `Date`
date = datatimelist[0].strip(',')
# print(date)
launch_dict['Date'].append(date)
# Time value
# TODO: Append the time into launch_dict with key `Time`
time = datatimelist[1]
# print(time)
launch_dict['Time'].append(time)
# Booster version
# TODO: Append the bv into launch_dict with key `Version Booster`
bv=booster_version(row[1])
if not(bv):
bv=row[1].a.string
# print(bv)
launch_dict['Version Booster'].append(bv)
# Launch Site
# TODO: Append the bv into launch_dict with key `Launch Site`
launch_site = row[2].a.string
# print(launch_site)
launch_dict['Launch site'].append(launch_site)
# Payload
# TODO: Append the payload into launch_dict with key `Payload`
payload = row[3].a.string
# print(payload)
launch_dict['Payload'].append(payload)
# Payload Mass
# TODO: Append the payload_mass into launch_dict with key `Payload mass`
payload_mass = get_mass(row[4])
# print(payload_mass)
launch_dict['Payload mass'].append(payload_mass)
# Orbit
# TODO: Append the orbit into launch_dict with key `Orbit`
orbit = row[5].a.string
# print(orbit)
launch_dict['Orbit'].append(orbit)
# Customer
# TODO: Append the customer into launch_dict with key `Customer`
customer = row[6].a.string if row[6].a else ""
# print(customer)
launch_dict['Customer'].append(customer)
# Launch outcome
# TODO: Append the launch_outcome into launch_dict with key `Launch outcome`
launch_outcome = list(row[7].strings)[0]
# print(launch_outcome)
launch_dict['Launch outcome'].append(launch_outcome)
# Booster landing
# TODO: Append the launch_outcome into launch_dict with key `Booster landing`
booster_landing = landing_status(row[8])
# print(booster_landing)
launch_dict['Booster landing'].append(booster_landing)
After you have fill in the parsed launch record values into
launch_dict
, you can create a dataframe from it.
df=pd.DataFrame(launch_dict)
df.head()
We can now export it to a CSV for the next section, but to make the answers consistent and in case you have difficulties finishing this lab.
Following labs will be using a provided dataset to make each lab independent.
df.to_csv('spacex_web_scraped.csv', index=False)
